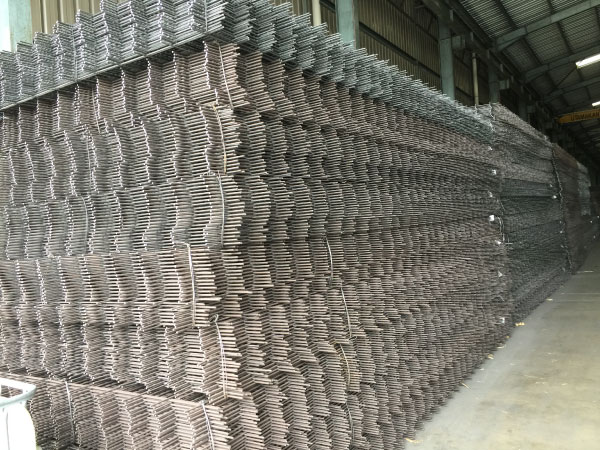

(BRC) Welded Wire Mesh

  • wire mesh manufacturer malaysia
  • brc malaysia

  • Conformed with MS 145:2006
  • Steel Reinforcement material
  • Used to replacing the traditional "Cut & Bend" and placing of steel thermo-mechanical treated bars
  • Offer better strength, integration and longer work time compared with other wire mesh products
  • Mesh in an electric fusion welded prefabricated reinforcement consisting of a series of parallel longitudinal; wires with accurate spacing welded to cross wires at the required spacing.
  • Better anchorage & crack control
  • Able transfer strength & bond strength
  • Any kinds of specification are decided by customer's requirement (Cut-To-Size / Bending are available)

Specification

Fabric Reference Longitudinal Wire Cross Wire Steel Area (mm²/m) Nominal Mass per Square Meter (kg/m²)
Diameter
(mm)		 Spacing
(mm)		 Diameter
(mm)		 Spacing
(mm)		 Main
(mm)		 Cross
(mm)
Square Mesh
A12 12 200 12 200 565 565 8.88
A11 11 200 11 200 475 475 7.46
A10 10 200 10 200 393 393 6.16
A9 9 200 9 200 318 318 4.99
A8 8 200 8 200 252 252 3.95
A7 7 200 7 200 193 193 3.02
A6 6 200 6 200 142 142 2.22
A5 5 200 5 200 98 98 1.54
A4 4 200 4 200 68 68 0.99
Rectangular Mesh
B12 12 100 8 200 1131 252 10.90
B11 11 100 8 200 950 252 9.44
B10 10 100 8 200 785 252 8.14
B9 9 100 8 200 636 252 6.97
B8 8 100 8 200 503 252 5.93
B7 7 100 7 200 385 193 4.53
B6 6 100 7 200 283 193 3.73
B5 5 100 7 200 196 193 3.05
Long Mesh
C12 12 100 8 400 1131 126 9.87
C11 11 100 8 400 950 126 8.44
C10 10 100 6 400 785 71 6.72
C9 9 100 6 400 636 71 5.55
C8 8 100 5 400 503 49 4.34
C7 7 100 5 400 385 49 3.41
C6 6 100 5 400 283 49 2.61
C5 5 100 5 400 196 49 1.93
Small Square Mesh
D12 12 100 12 100 1131 1131 17.76
D11 11 100 11 100 950 950 14.91
D10 10 100 10 100 785 785 12.32
D9 9 100 9 100 636 636 9.98
D8 8 100 8 100 503 503 7.90
D7 7 100 7 100 385 385 6.04
D6 6 100 6 100 283 283 4.44
D5 5 100 5 100 196 196 3.08
D4 4 100 4 100 126 126 1.97
